Zone Kit — Weapon Animation modding

Step 1: Create Your Mod

Begin by creating a new mod:

  • Open the Modding Tool and click Create Mod.
  • In the window that appears:
    • Enter the mod name (e.g., for a weapon mod).
    • Fill in the author field and add any description you want.
  • Click Create Mod to generate the project. A content folder for your mod will be created automatically.

Step 2: Replace Animation Assets

To make this type of mod, you’ll need a pre-prepared animation file (recommendation to make it in Maya).

  • Locate the folder containing:
    • Player animation assets
    • Montage files
  • Do the same for the weapon folder.
  • The folder structure is duplicated — you’ll need to replace animations for both the player and the weapon.
  • In the Content Browser, select the asset you want to replace.
  • Replace it with your new source file.
  • Update the Animation Montage duration to reflect the new animation length.





 Important: Asset names must comply with naming conventions to work correctly.



Step 3: Configure Animation Settings

Next, adjust the configuration so that your new animation plays properly.

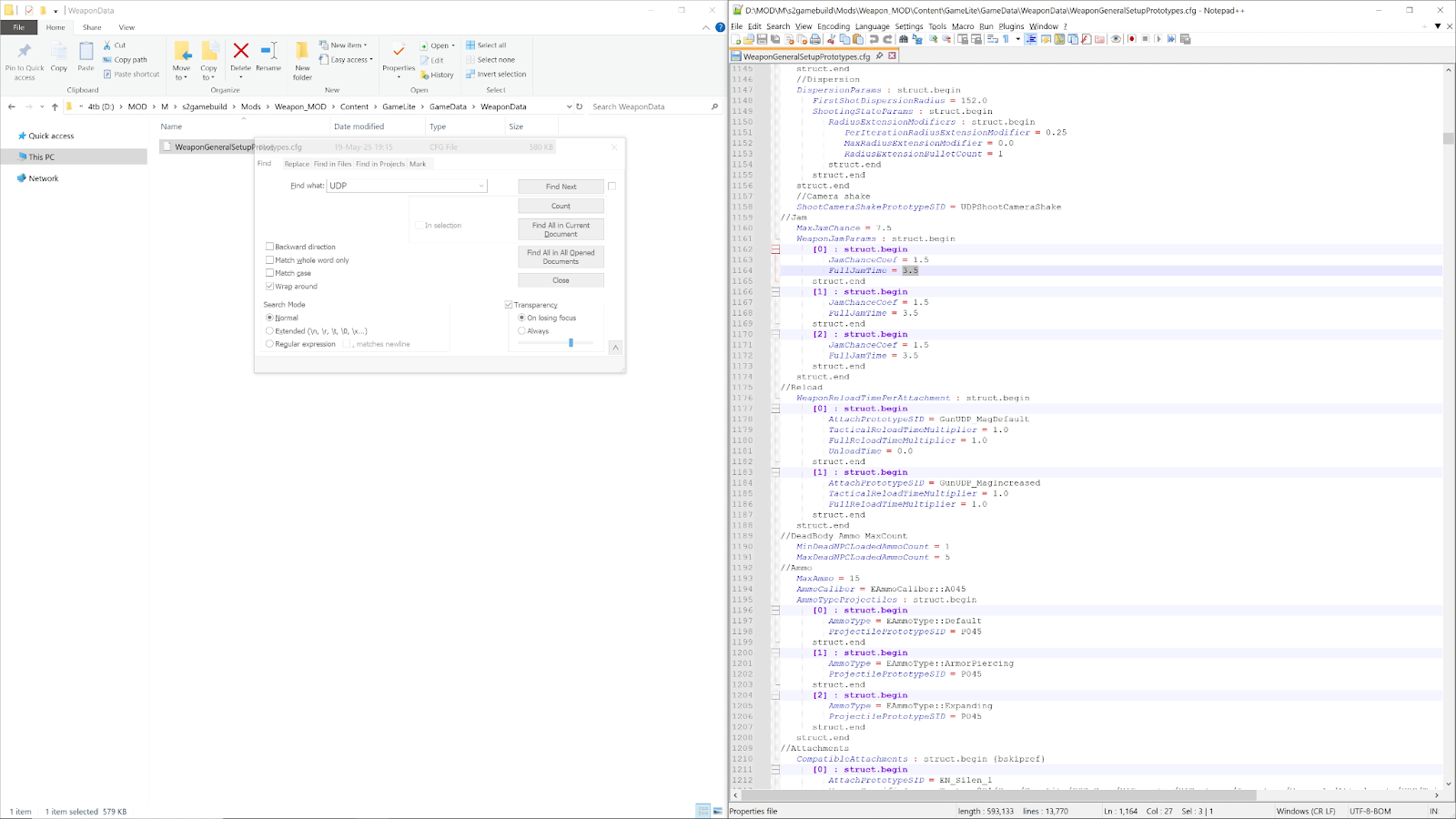

  • Find the relevant Config file in the original mod folder.

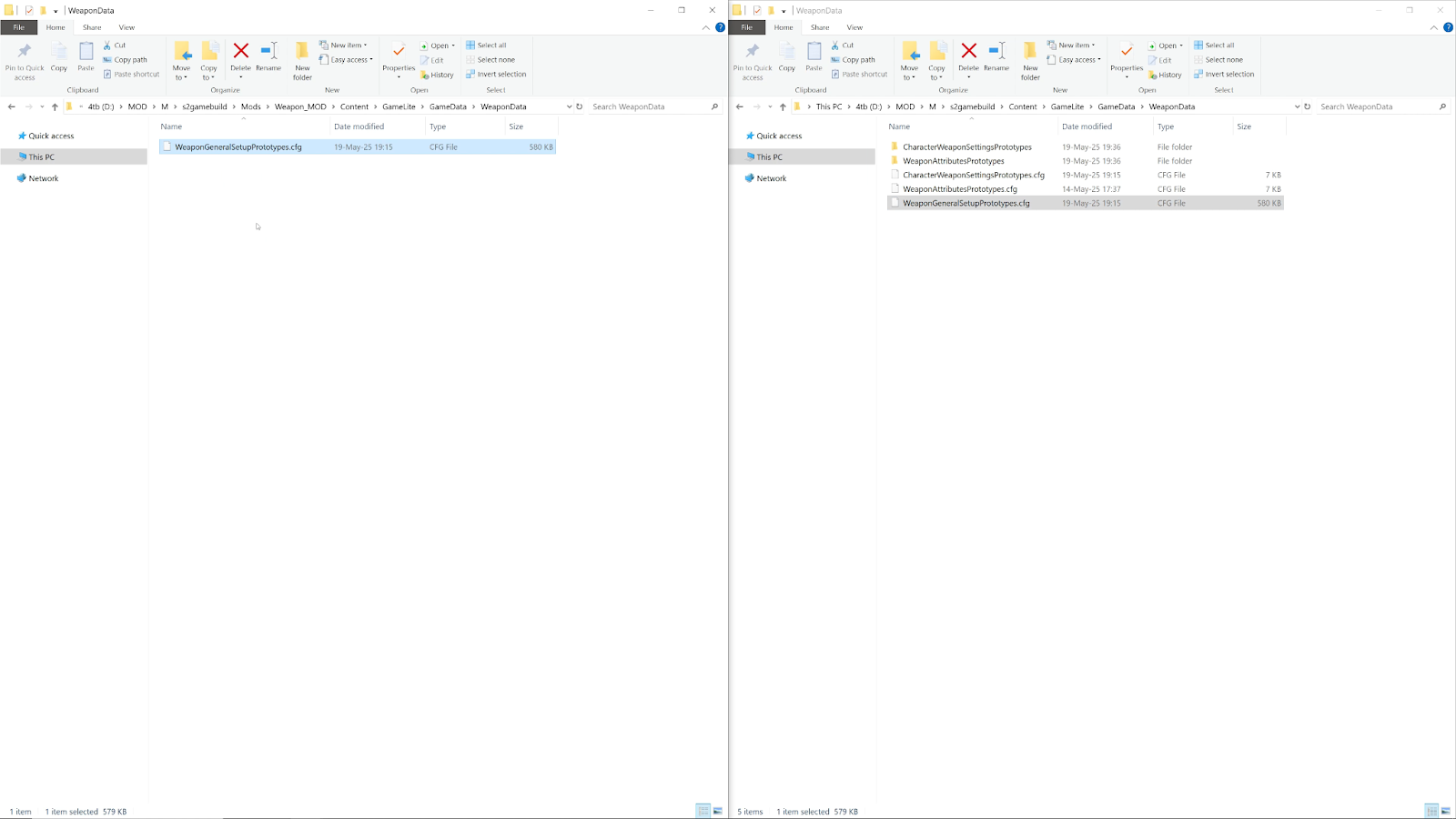

  • Copy this file into your mod’s folder — be sure to maintain the original folder structure.
  • Open the file in a text editor.
  • Update the jam animation parameters:
    • For example, if the default is 3.5 seconds and your new animation is 5 seconds, update the timing accordingly.
  • Save the file.





Step 4: Cook and Upload the Mod

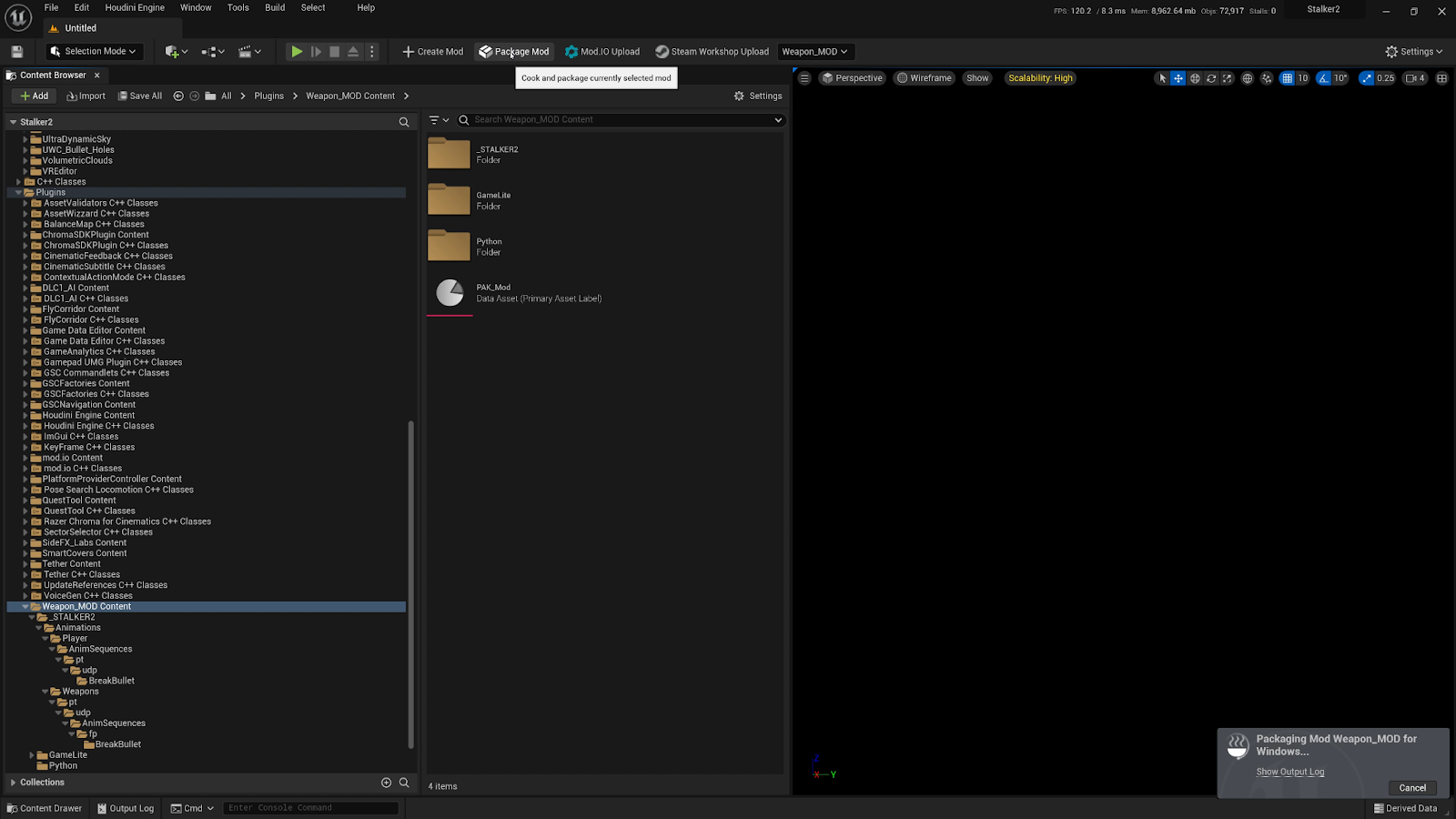

  1. Open the editor and cook your mod.
  2. Once ready, begin the upload process to the mod repository.

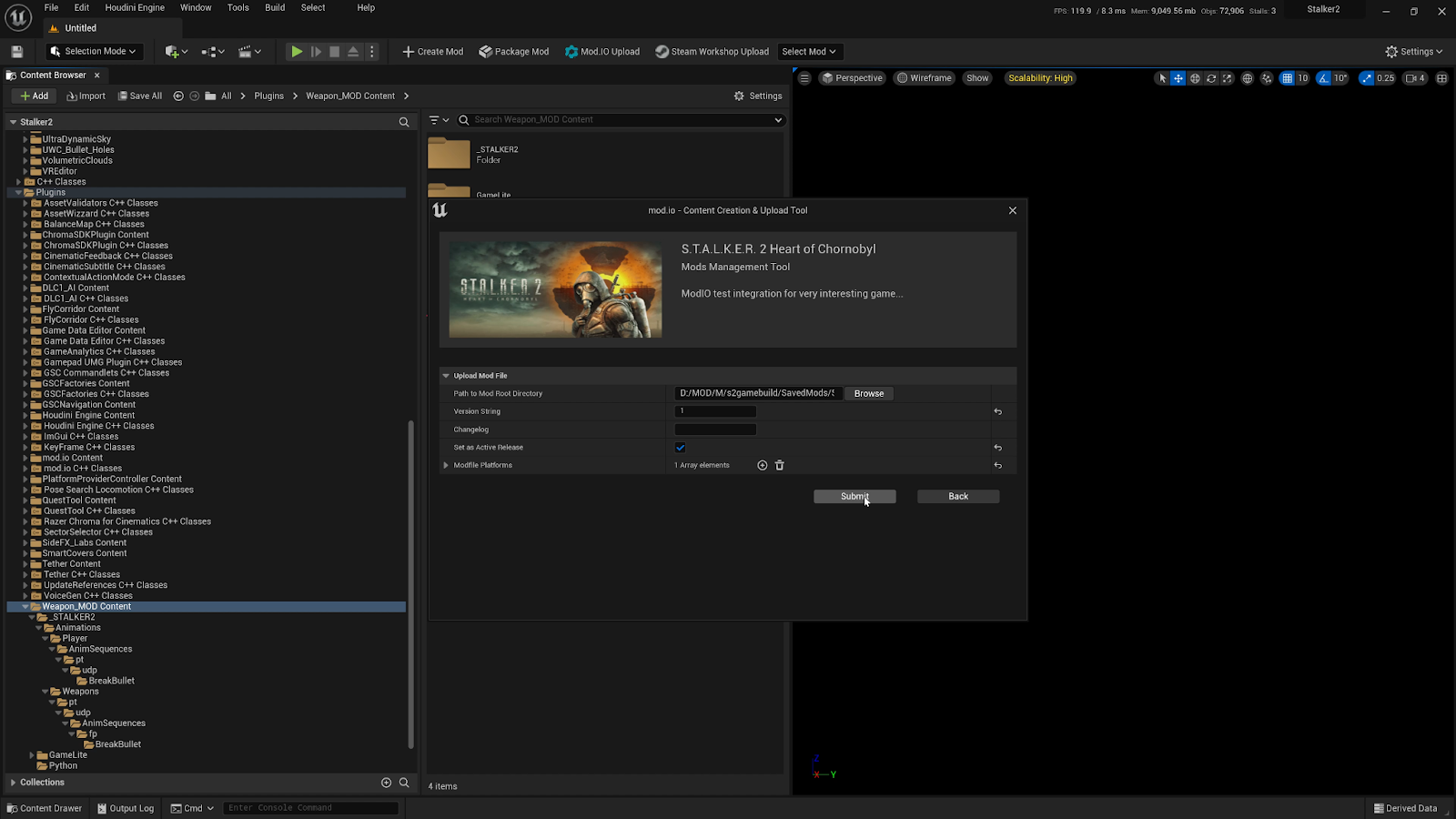

Upload to Mod.IO

  • Ensure your active mod project is selected.
  • Click Mod.IO Upload → Create Mod.
  • Fill in all required fields and attach a logo.
  • Click Submit.
  • Press Create Mod for PC.
  • Specify the path: SavedMods > Staged > [Your Mod Name].
  • Optional: If you want the mod to go live immediately, check Set as active release.

  • Hit Submit to complete the process.

     You can later update the title, description, and upload screenshots directly on Mod.IO or Steam Workshop.




Step 5: Upload to Steam Workshop

  • Select your mod and click Steam Workshop Upload → New Mod.
  • Enter the mod’s title and description.
  • Set visibility to Public.
  • If the mod is already packaged, uncheck Package mod before upload.
  • Attach a preview image and proceed with the upload.


Step 6: Test Your Mod In-Game

  • Launch the game and open the in-game Mod Browser.
  • Find your mod and click Subscribe.


For Steam Users:

  • Use Shift + TAB to open the Steam Overlay.
  • Navigate to Steam Workshop.
  • Locate your mod and subscribe to enable it.

Your weapon mod is now ready to use. Happy modding, stalker!
